1-5000N.m Fully Automatic Torque Wrench Calibrator

Product Introduction

The TYD-LN series fully automatic torque wrench calibrator is a high-precision intelligent testing instrument specially developed for the calibration, verification and quality inspection of various torque wrenches. It supports automatic loading, automatic torque holding, data collection and result judgment, greatly improving testing efficiency and ensuring stable and accurate calibration data.
Equipped with high-precision torque sensors and intelligent digital control system, the equipment features wide torque range, high repeatability and strong anti-interference ability. It is compatible with manual torque wrenches, meeting diverse calibration requirements for industrial tools.
With automatic test mode, one-key operation and intelligent data recording, the device can automatically complete the whole calibration process without manual intervention. It can store, display and export test reports, realizing standardized and traceable tool management.
Widely applied in metrology institutions, quality inspection departments, machinery manufacturing, automobile industry, petrochemical engineering, steel structure construction and equipment maintenance factories, it is an essential professionalcalibration equipment for torque tool inspection and regular verification.

Technical Parameter

Product Features

1. High-precision data acquisition: Equipped with a high-precision torque sensor, it supports multiple acquisition modes—such as real-time and peak value recording—to meet metrological verification accuracy standards.

2. Fully automated testing process: Users can configure the number of test cycles and target torque values; the system automatically handles loading, data acquisition, and statistical analysis, thereby minimizing human error.

3. Comprehensive data management: Supports multi-set data storage, automatic calculation of averages and error values, curve visualization, and data export, facilitating the generation of metrological verification reports.

4. Multiple safety protections: Includes features such as torque alarm thresholds, mechanical limit stops, and over-travel protection to prevent damage to the equipment and the tool under test caused by overloading.

5. High adaptability: Compatible with torque sensors of various ranges and a wide array of torque wrench models, meeting testing requirements across diverse applications.

Product parts introduction

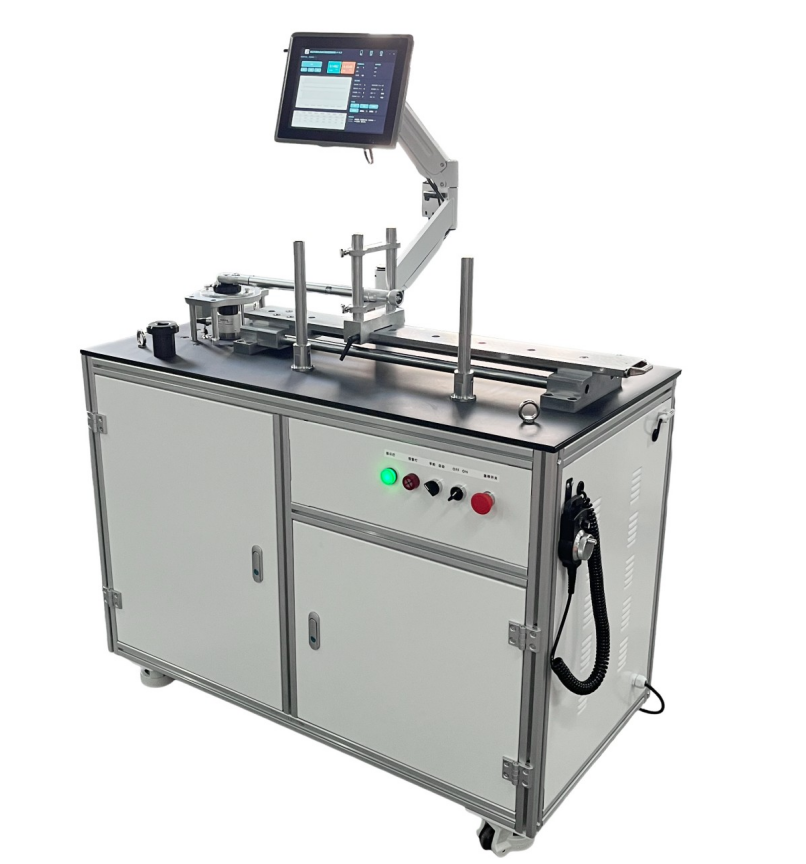

 1. Display instrument 2. Sensor 3. Afterburner 4. Slider 5. Control cabinet 6. Power switch 7. Electronic handwheel

Note:
1. The load exceeding 120% of the maximum range of the range cannot be detected!
2. Be sure to change the meter range setting after replacing the sensor, and make sure it is correct before loading!
3. When replacing the sensor, be sure to pay attention to the position of the output plug of the sensor and the signal line to ensure that other parts are not touched during the entire loading process, and the signal line is in a free state.

Special reminder: The sensor can only be rotated at a certain angle. When installing, the sensor output connector should be placed in a suitable position. When the electronic handwheel is loaded and unloaded, prevent the sensor from turning too large to avoid damage to the sensor! ! !

Technical specifications

1. Measuring range:    According to the model

2. Measurement accuracy: ±1% (accuracy of the whole machine ±0.3% can be provided)

3. Alarm value setting range: within the full scale range

4. Conditions of use
(a) Ambient temperature: 0～40℃
(b) Relative humidity: ≦80%RH
(c) Power supply: AC 220V ±10% 50Hz
